Combustion burn waste heat recovery tail gas purify honeycomb ceramic regenerator substrate

Combustion burn waste heat recovery tail gas purify honeycomb ceramic regenerator substrate

Short Description:

Wood stove fireplace precious metal catalyst uses cordierite honeycomb ceramic or metal substrate as carrier,and palladium (Pd) platinum (Pt) rhodium (Rh) as the main active component.it is mainly used to treat harmful exhaust gas such as carbon monoxide (CO) and incompletely burned hydrocarbons (CnHm) generated during the barbecue or burning process of the oven or fireplace.


Product Detail

Product Tags

Product description

微信图片_20231211141532

Wood stove catalytic converter generally use mullite or cordierite honeycomb ceramics with stainless steel material as the shell. Due to its good heat resistance and high temperature resistance, it can be used for wooden stove and fireplaces. The honeycomb shaped pore size can filter some impurities and can be used for smoke exhaust port filtration.

It has two types,without coating(left one) and coating with precious metal (right one).Without coating wood stove converter can used in the common fire-place,it can help to thermal storage and filter some smoke and dust. If it is nec-essary to reduce CO emissions,coat-ings can be customized according to the application environment, it can lock the heat and reduce consumption.

Specification

Item
Data
Structure
Honeycomb Ceramic+Stainless steel Shell
Carrier material
Mullite/Cordierite honeycomb substrate
Honeycomb density
100, 200, 300, 400 or 600 CPSI
Precious metal can be coated
Pt  and so on.
Size
Dia152x50mm,148x50mm,145x50mm,114x50mm or customized
Light-off temperature
200°C
Optimal use temperature
600-800°C
Co outlet concentration
≤4mg/m3(Just to refer to,it depends on the application)
Non methane CnHm outlet concentration
≤5mg/m3
Remarks
Can be customized.
Shape
Round
Please note:the coating as the client's demand.



Advantage

1. Low combustion temperature, flameless combustion and heat locking.

2. Fast combustion, complete combustion, and reduced fuel use.

3. The combustion products are harmless CO2 and H2O and do not produce secondary pollutants.

4. Wide scope of application.

Working principle

工作原理

Installation Instruction

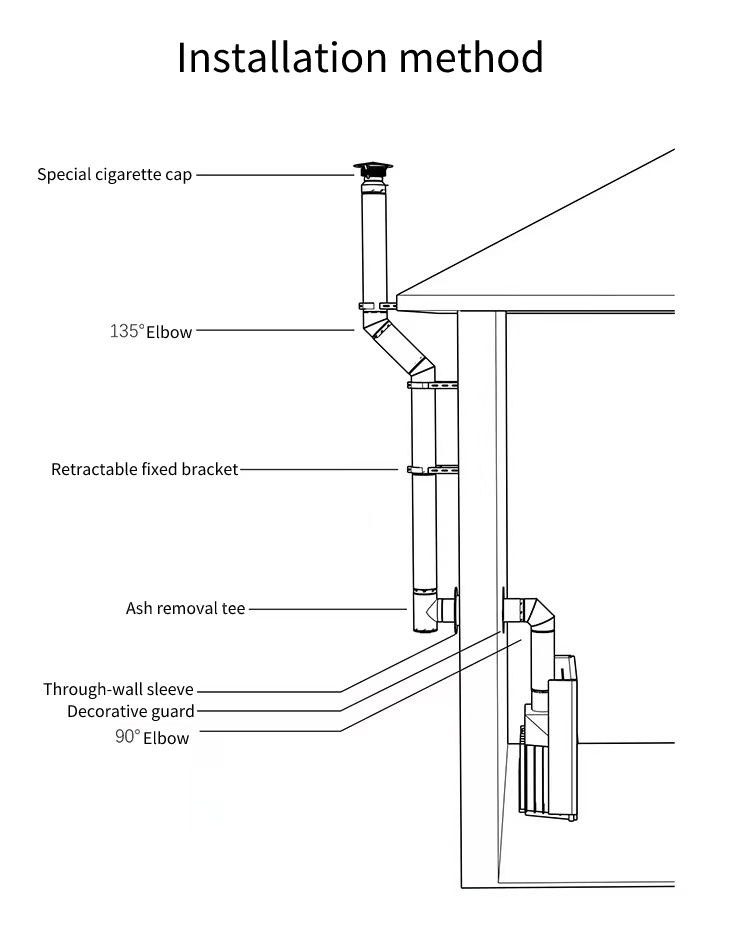

Installation method

Installation Instruction
