Factory Supply Ceramic Foam Filter Silicon Carbide Ceramic Filter

Factory Supply Ceramic Foam Filter Silicon Carbide Ceramic Filter

Short Description:






  • Product name: Silicon carbide /SIC Ceramic Foam Filter
  • Material: Silicon Carbide
  • Color: Grey
  • Pore Density: 10-60PPI
  • Refractoriness: ≤1500℃
  • Porosity: 80-90%
  • Compressive strength : 1.0 Mpa
  • Customize: Shape/Size
  • Product Detail

    Product Tags

    Product Description

    17

    Silicon carbide foam ceramic filter using German imported polyurethane foam sponge as a carrier, silicon carbide mainly squeezed into the foam sponge, and then squeeze out the slurry,the slurry around the foam fiber, after drying, baking at high temperature,polyurethane thermal decomposition, leaving foam ceramic products, namely silicon carbide foam ceramic filter.

    The silicon carbide foam ceramic filter, with the three- dimensional mesh interconnection structure of foam sponge, can make metal liquid reflect rectification, mechanical screening, filtration cake, adsorption and other filtration mechanisms to effectively improve the purity of metal liquid, reduce waste rate, reduce mechanical processing loss, thus improve production efficiency and reduce production cost. Silicon carbide foam ceramic filter has high strength, good thermal stability, larger than surface area and high size accuracy.

    Functions Of Ceramic Foam Filter

    15

    ● Decontaminate the melting metal liquid
    ● Simplified gating system
    ● Improve the metallurgical structure of the castings
    ● Reduce imparities of the castings
    ● Improve casting quality rate
    ● Reduce casting internal re-oxidation defects
    ● Reduce the surface defects after machining of the castings

    Physical And Chemical Properties

    Material

    Silicon Carbide

    Color

    Grey black

    Pore Density

    8-60ppi

    Porosity

    80-90%

    Refractoriness

    ≤1500℃

    Bending Strength

    >0.8Mpa

    Compression Strength

    >0.9Mpa

    Volume-weight

    0.35-0.5 g/cm3

    Thermal shock resistance

    6times/1100℃

    Application

    Ductile Cast Iron, Malleable Cast Iron, Gray iron and other Cast Iron

    Specification For Silicon Carbide Foam Filter

    Dimension (mm)

    Pouring rate (kg/s)

    Filtration capacity (ton)

    Grey Iron

    Ductile Iron

    Grey Iron

    Ductile Iron

    40*40*22

    4

    3

    65

    32

    50*50*22

    6

    4

    100

    52

    75*50*22

    9

    6

    150

    75

    75*75*22

    14

    9

    220

    100

    100*50*22

    12

    8

    200

    100

    100*75*22

    18

    12

    300

    150

    100*100*22

    25

    16

    400

    200

    150*150*22

    50

    36

    900

    450

    Application

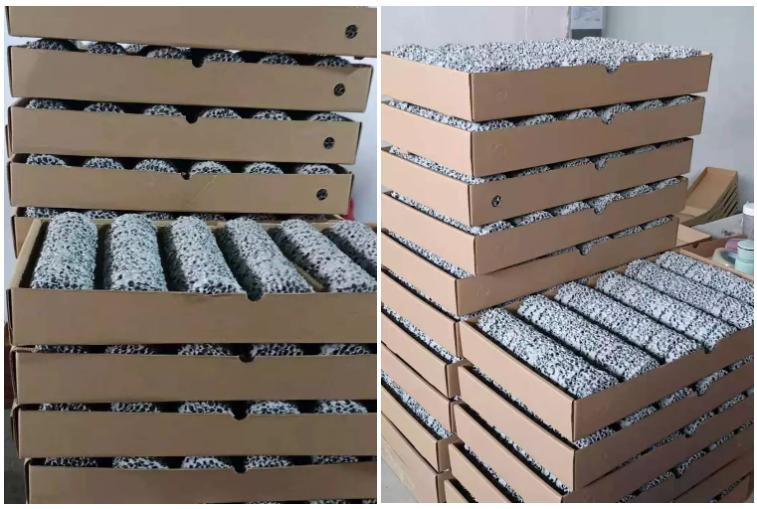

    BS3
    BS4
